2.2N NEMA23 Closed Loop Stepper Motor encoder driver HB808C + 3meter  cable

2.2N NEMA23 Closed Loop Stepper Motor encoder driver HB808C + 3meter cable

  • Model:  N23-2.2N-cable-3m
  • Availability:  In Stock
  • Handling time:  1-5 Business day
  • Shipping:  FREE Economy Int'l Shipping | Ships to Worldwide | See details
  • Import duites: We can make declaration according buyer's request.
  • Taxes are received by destination customs,and buyer have responsibility to afford it.
  • Payment:  Credit Cards processed by PayPal
$99.00

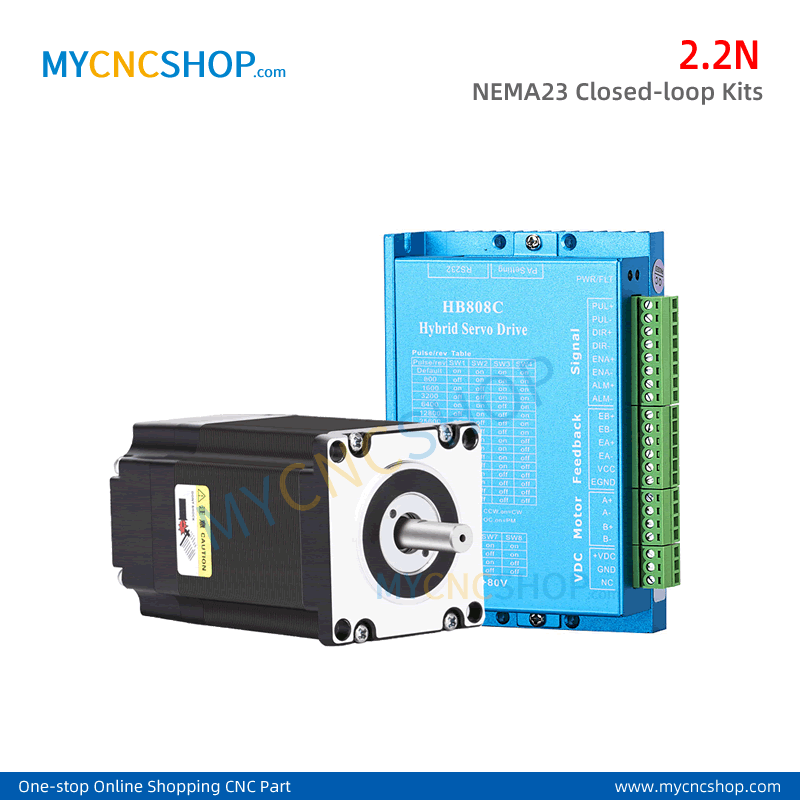

2.2N NEMA23 Closed Loop Stepper Motor encoder driver HB808C with cable

Condition:NEW

Model:NEMA23 2.2N Stepper Motor kits

This item include:
---------------------------------------------
1Pcs Driver HB808C
1Pcs NEMA23 2.2N Closed Loop Stepper Motor
1Pcs [L]meter cable (Delivery according the model which you choosed.)
---------------------------------------------

NEMA23 spec


Driver details:
Model:HB808C
Working voltage: DC input voltage 24VDC~80VDC, recommended working voltage 36V/48V
Maximum continuous output current 8.0A, maximum peak current 13A (advanced hybrid servo overload capability)
Accept differential and single-ended pulse/direction commands, with position/speed/torque three control modes
With serial port RS232 debugging function, it can be monitored and debugged by data connection to the host computer. The software has established more than 100 sets of parameters.

Closed-loop driver HB808C

Characteristic:
●Adopt FOC magnetic field positioning control technology and space vector pulse width modulation (SVPWM) closed-loop control technology
●Adopting advanced variable current technology and frequency conversion technology, effectively reducing the heating of the motor and driver
●The number of pulses per circle can be set by debugging software or dial code (subdivision)
●With protection functions such as over-voltage, under-voltage, over-current and over-tolerance
●Single/double pulse mode, pulse valid edge optional (selected through serial port connection to the host computer)
●The maximum pulse frequency of the control command is 500KHz (the factory default is 200KHz)
●Pulse, direction and enable signal input interface level is 4.5-28V compatible
●Performance: stable speed, small overshoot, small tracking error, low heat of motor and driver
Applicable industry: dispensing machine / Woodworking Machine / welding machine / screw machine / zipper machine / winding machine / Mounter / packaging machine / engraving machine / laser machine /LED/ electronic equipment.
