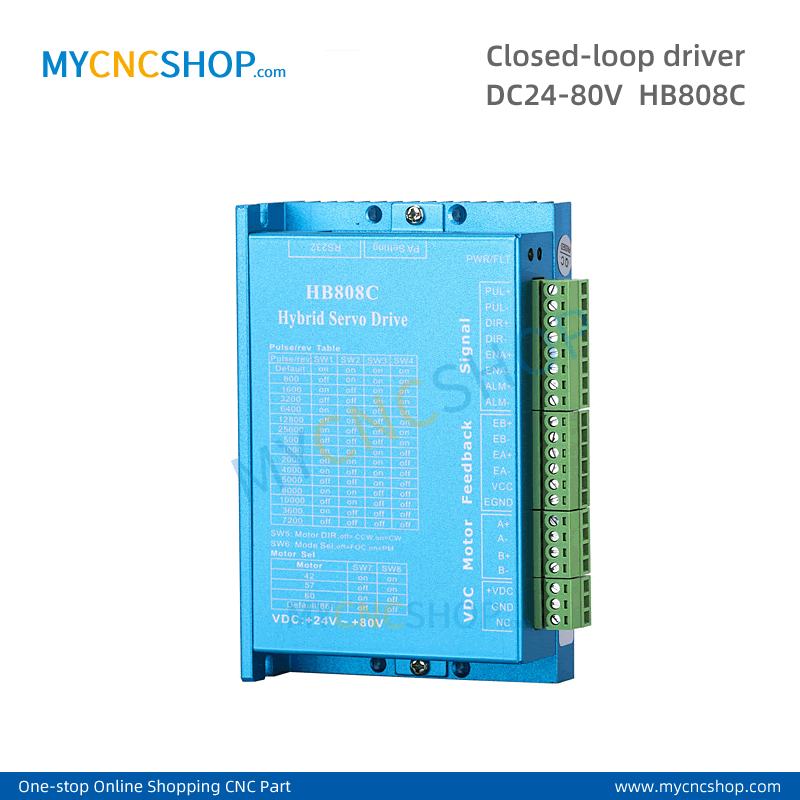

NEMA17 NEMA23 Closed Loop Stepper driver HB808C
- Model: NEMA17HB808C
- Availability: In Stock
- Handling time: 1-5 Business day
- Shipping: FREE Economy Int'l Shipping | Ships to Worldwide | See details
- Import duites: We can make declaration according buyer's request.
- Taxes are received by destination customs,and buyer have responsibility to afford it.
- Payment:
$43.00
Condition:NEW
Model:HB808Cs
This item include:
-------------------
1Pcs Driver HB808C
-------------------
Model:HB808C
Working voltage: DC input voltage 24VDC～80VDC, recommended working voltage 36V/48V
Maximum continuous output current 8.0A, maximum peak current 13A (advanced hybrid servo overload capability)
Accept differential and single-ended pulse/direction commands, with position/speed/torque three control modes
With serial port RS232 debugging function, it can be monitored and debugged by data connection to the host computer. The software has established more than 100 sets of parameters.
Characteristic:
●Adopt FOC magnetic field positioning control technology and space vector pulse width modulation (SVPWM) closed-loop control technology
●Adopting advanced variable current technology and frequency conversion technology, effectively reducing the heating of the motor and driver
●The number of pulses per circle can be set by debugging software or dial code (subdivision)
●With protection functions such as over-voltage, under-voltage, over-current and over-tolerance
●Single/double pulse mode, pulse valid edge optional (selected through serial port connection to the host computer)
●The maximum pulse frequency of the control command is 500KHz (the factory default is 200KHz)
●Pulse, direction and enable signal input interface level is 4.5-28V compatible
●Performance: stable speed, small overshoot, small tracking error, low heat of motor and driver
Applicable industry: dispensing machine / Woodworking Machine / welding machine / screw machine / zipper machine / winding machine / Mounter / packaging machine / engraving machine / laser machine /LED/ electronic equipment.
Model:HB808Cs
This item include:
-------------------
1Pcs Driver HB808C
-------------------
Model:HB808C
Working voltage: DC input voltage 24VDC～80VDC, recommended working voltage 36V/48V
Maximum continuous output current 8.0A, maximum peak current 13A (advanced hybrid servo overload capability)
Accept differential and single-ended pulse/direction commands, with position/speed/torque three control modes
With serial port RS232 debugging function, it can be monitored and debugged by data connection to the host computer. The software has established more than 100 sets of parameters.
Characteristic:
●Adopt FOC magnetic field positioning control technology and space vector pulse width modulation (SVPWM) closed-loop control technology
●Adopting advanced variable current technology and frequency conversion technology, effectively reducing the heating of the motor and driver
●The number of pulses per circle can be set by debugging software or dial code (subdivision)
●With protection functions such as over-voltage, under-voltage, over-current and over-tolerance
●Single/double pulse mode, pulse valid edge optional (selected through serial port connection to the host computer)
●The maximum pulse frequency of the control command is 500KHz (the factory default is 200KHz)
●Pulse, direction and enable signal input interface level is 4.5-28V compatible
●Performance: stable speed, small overshoot, small tracking error, low heat of motor and driver
Applicable industry: dispensing machine / Woodworking Machine / welding machine / screw machine / zipper machine / winding machine / Mounter / packaging machine / engraving machine / laser machine /LED/ electronic equipment.
